SNAR produces steel strips for cold forming, blanking and fine blanking  of different qualities ranging from high to low carbon, alloyed and high-strength steels.

0.30 mm to 7.00 mm thickness 7 mm to 450 mm  width.

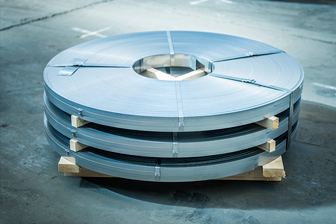

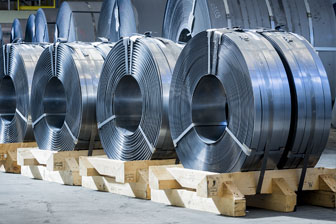

Oscillated wound strips or coils.

Narrow tolerances, perfect planarity, clean surfaces, cut or rounded edges.

Article Euro Norm Thicknesses Coils Oscillated Sheets MA MB MC RF SNAR
Nastri a basso tenore di carbonio DC01 EN 10139 0,4-3,5
DC03 EN 10139 0,4-3,5
DC04 EN 10139 0,4-3,5
DC06 EN 10139 0,4-3,5
Acciai da tempra C40E EN 10132-3 0,4-3,5
C45E EN 10132-3 0,4-3,5
C50E EN 10132-3 0,4-3,5
C55E EN 10132-3 0,4-3,5
C60E EN 10132-3 0,4-3,5
Acciai per molle C55S EN 10132-4 0,4-3,5
C60S EN 10132-4 0,4-3,5
C67S EN 10132-4 0,4-3,5
C75S EN 10132-4 0,4-3,5
C60 51CRV4 0,4-3,5
Article Condition Rp N/mm2 Rm N/mm2 A80% HV max
Nastri a basso tenore di carbonio DC01 ≤ 280 270 – 410 ≥ 28
DC03 ≤ 210 270 – 350 ≥ 38
DC04 ≤ 180 270 – 330 ≥ 40
DC06 ≤ 170 270 – 350 ≥ 41
Acciai da tempra C40E +A+LC
+CR
≤ 440 ≤ 550
≤ 970
≥ 18 ≤ 170
≤ 280
C45E +A+LC
+CR
≤ 455 ≤ 570
≤ 1020
≥ 18 ≤ 180
≤ 290
C55E +A+LC
+CR
≤ 480 ≤ 600
≤ 1070
≥ 17 ≤ 185
≤ 300
C60E +A+LC
+CR
≤ 495 ≤ 620
≤ 1100
≥ 17 ≤ 195
≤ 305
Acciai per molle C55S +A+LC
+CR
≤ 480 ≤ 600
≤ 1070
≥ 17 ≤ 185
≤ 300
C60S +A+LC
+CR
≤ 495 ≤ 620
≤ 1100
≥ 17 ≤ 185
≤ 300
C67S +A+LC
+CR
≤ 510 ≤ 640
≤ 1140
≥ 17 ≤ 200
≤ 315
C75S +A+LC
+CR
≤ 510 ≤ 640
≤ 1170
≥ 15 ≤ 200
≤ 320
51CrV4 +A+LC
+CR
≤ 550 ≤ 1170
≤ 700
≥ 13 ≤ 320
≤ 220
Article C max SI max Mn P max S max Cr max
Nastri a basso tenore di carbonio DC01 0.12 0.10 0.60 0.045 0.045 0.015 - 0.070
DC03 0.10 0.10 0.45 0.035 0.035 0.015 - 0.070
DC04 0.08 0.10 0.40 0.025 0.020 0.015 - 0.070
DC06 0.02 0.10 0.25 0.020 0.020
Articolo C max SI max Mn P max S max Cr max Mo max Ni max
Acciai da tempra C40E 0.37 - 0.44 0.40 0.50 - 0.80 0.035 0.035 0.40 0.10 0.40
C45E 0.42 - 0.50 0.40 0.50 - 0.80 0.035 0.035 0.40 0.10 0.40
C55E 0.52 - 0.60 0.40 0.60 - 0.90 0.035 0.035 0.40 0.10 0.40
C60E 0.57 - 0.65 0.40 0.60 - 0.90 0.035 0.035 0.40 0.10 0.40
Articolo C max SI max Mn P max S max Cr max Mo max Ni max V
Acciai per molle C55S 0.52 - 0.60 0.40 0.60 - 0.90 0.025 0.025 0.40 0.10 0.40
C60S 0.52 - 0.65 0.40 0.60 - 0.90 0.025 0.025 0.40 0.10 0.40
C67S 0.65 - 0.73 0.40 0.60 - 0.90 0.025 0.025 0.40 0.10 0.40
51CrV4 0,47 - 0,55 0.40 0.70 - 1.10 0.025 0.025 0.90 - 1.20 0.10 0.40 0.10 - 0.25

TYPES OF APPLICATION
