SNAR produce nastri di acciaio per tranciatura, imbutitura e stampaggio di diverse qualità che vanno dall’alto al basso carbonio, acciai legati e alto-resistenziali.
Spessori dallo 0.30mm ai 7.00mm, larghezze da 7mm a 450mm.

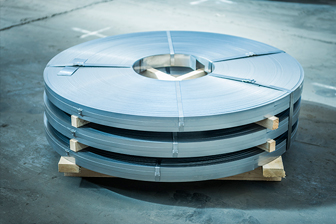

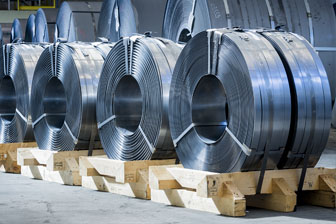

Nastri classici avvolti spira su spira o matassati avvolti spirale.
Tolleranze ristrette, perfetta planarità, superfici lisce o rugose, spigoli tagliati o arrotondati.
| GRADE | RE (N/mm²) | RM (N/mm²) | AL% (L=80) | |
|---|---|---|---|---|
| High Carbon Steel | C10E | max 345 | max 430 | min 26% |
| C15E | max 360 | max 450 | min 25% | |
| 16MnCr5 | max 420 | max 550 | min 21% | |
| 17Cr3 | max 420 | max 550 | min 21% | |
| High Carbon Steel | C22E | max 400 | max 500 | min 22% |
| C30E | max 420 | max 520 | min 20% | |
| C35E | max 430 | max 540 | min 19% | |
| C40E | max 440 | max 550 | min 18% | |
| C45E | max 455 | max 570 | min 18% | |
| High Carbon Steel | C50E | max 465 | max 580 | min 17% |
| C55E | max 480 | max 600 | min 17% | |
| C60E | max 495 | max 620 | min 17% | |
| 25Mn4 | max 460 | max 590 | min 20% | |
| 25CrMo4 | max 440 | max 580 | min 19% | |
| High Carbon Steel | 34CrMo4 | max 460 | max 600 | min 16% |
| 42CrMo4 | max 480 | max 620 | min 15% | |
| C55S | max 480 | max 600 | min 17% | |
| C60S | max 495 | max 620 | min 17% | |
| C67S | max 510 | max 640 | min 16% | |
| High Carbon Steel | C75S | max 510 | max 640 | min 15% |
| 51CrV4 | max 550 | max 700 | min 13% | |
| C85S | max 670 | max 535 | min 15% | |
| C90S | max 680 | max 545 | min 14% | |
| C100S | max 690 | max 550 | min 13% |
| GRADE | RE (N/mm²) | RM (N/mm²) | AL% (L=80) | |
|---|---|---|---|---|
| Low Carbon Steel | DC01 A | ----- | 270/390 | min 28% |
| DC01 LC | max 280 | 270/410 | min 28% | |
| DC01 C290 | 200/380 | 290/430 | min 18% | |
| DC01 C340 | min 250 | 340/490 | ----- | |
| Low Carbon Steel | DC01 C390 | min 310 | 390/540 | ----- |
| DC01 C440 | min 360 | 440/590 | ----- | |
| DC01 C490 | min 420 | 490/640 | ----- | |
| DC01 C590 | min 520 | 590/740 | ----- | |
| DC01 C690 | min 630 | min 690 | ----- | |
| Low Carbon Steel | DC03 C340 | min 240 | 340/440 | ----- |
| DC03 C390 | min 330 | 390/490 | ----- | |
| DC03 C440 | min 380 | 440/540 | ----- | |
| DC03 C490 | min 440 | ----- | ----- | |
| DC03 C590 | min 540 | min 590 | ----- | |
| Low Carbon Steel | DC03 A | ----- | 270/370 | min 34% |
| DC04 A | ----- | 270/350 | min 38% | |
| DC03 LC | max 240 | 270/370 | min 34% | |
| DC03 LC | max 240 | 270/370 | min 34% | |
| DC03 C290 | 210/355 | 290/390 | min 22% | |
| Low Carbon Steel | DC04 LC | max 210 | 270/350 | min 38% |
| DC04 C290 | 220/325 | 290/390 | min 24% | |
| DC04 C340 | min 240 | 340/440 | ----- | |
| DC04 C390 | min 350 | 390/490 | ----- | |
| DC04 C440 | min 400 | 440/540 | ----- | |
| Low Carbon Steel | DC04 C490 | min 460 | 490/590 | ----- |
| DC05 LC | max 180 | 270/330 | min 40% | |
| DC07 LC | max 150 | 270/310 | min 40% |
| GRADE | RE (N/mm²) | RM (N/mm²) | AL% (L=80) | |
|---|---|---|---|---|
| High Strengh Steel | HC260 LA | 260-330 | 350-430 | min 26% |
| HC300 LA | 300-380 | 380-480 | min 23% | |
| HC340 LA | 340-420 | 410-510 | min 21% | |
| HC380 LA | 380-480 | 440-580 | min 19% | |
| High Strengh Steel | HC420 LA | 420-520 | 470-600 | min 17% |
| HC460 LA | 460-580 | 510-660 | min 13% | |
| HC500 LA | 500-620 | 550-710 | min 12% |
TIPOLOGIE DI APPLICAZIONE
Brakes and friction
Clutch systems
Safety belt systems
Drivetrain chain
Hinges
Switched
